Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber

Shanghai Herzesd Industrial Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber

Place of Origin : Shanghai, China

Brand Name : Herzesd

Model Number : HZ-A418E

MOQ : 10

Price : $13-18

Material : PVC+EVA/EPDM foam+Rubber

Volume Resistance : 10e6-10e9 ohm

Max Length : 20m

Width : 2.4m

Thickness : 17mm

Surface Resistance : 1x10E8-10E9 ohms

Max Weight : 100KG

Layer Structure : 3 layers

Surface Material : PVC

Middle Layer : EVA foam

Bottom Layer : Conductive rubber or PE

Standard Size : 610x910x17, 610x450x17

Color Options : Black or black & Yellow

Ground Resistance : 109-1010ohm

Fit Condition : Electronic workshop

Contact Now

Products Description

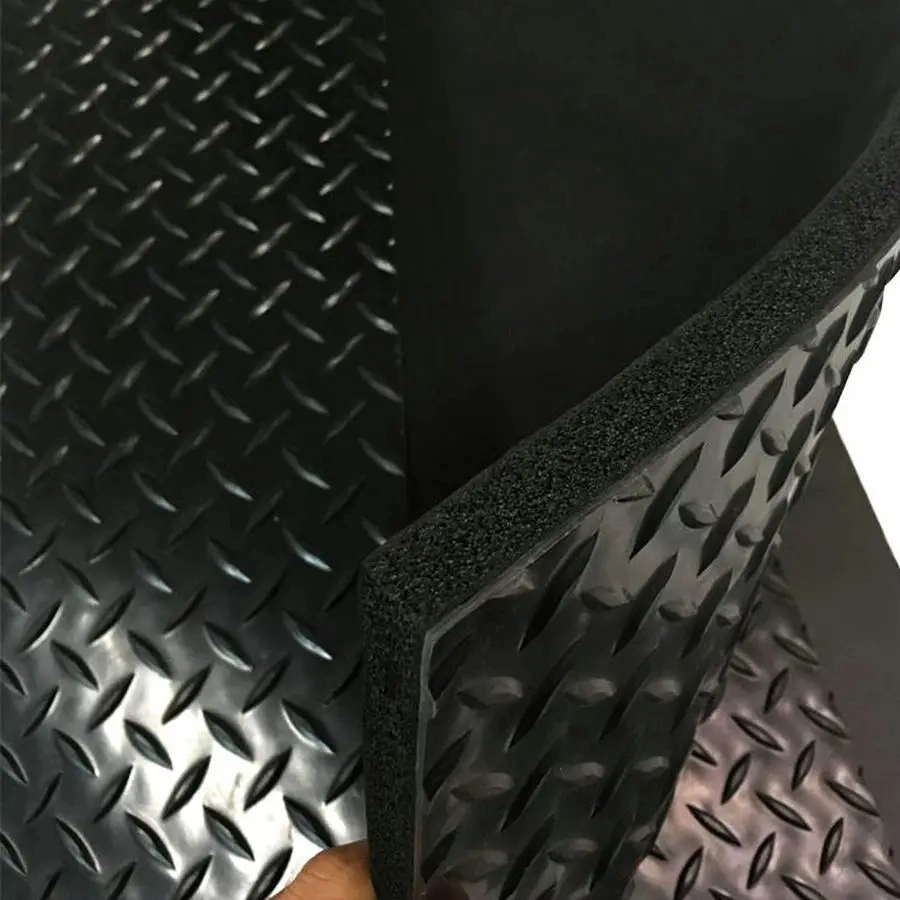

ESD Anti-fatigue Mat 3 layers structure, surface is pvc, middle layer is EVA foam, bottom layer is conductive rubber or PE.
Size(mm): 610x910x17, 610x450x17, other size can be customized. Color: Black or black &Yellow Max .length :20m Max. Width:2.4m Thickness: 17mm Surface resistance: RTT 1x10E8-10E9 ohms (PVC Surface) Fit for electronic components manufacturers and static sensitive area Features: Fit for electronic workshop and static sensitive area. Note: This type also could do Non-ESD type
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Model
Size(mm)
Material
Surface Resistance
Ground Resistance
Note
HZ-950
610x460x15
Good Natural Rubber
<107ohm
<107ohm
HZ-930
610x910x12.5
610x450x12.5
Rubber Material
108-109ohm
108-109ohm
Low cost
design
HZ-418S
610x910x17
2 layers:
PVC+ Carbamic resin
108-109ohm
109-1010ohm
HZ-418E
610x910x18
610x450x18
3 layers: PVC + Carbamic resin + Conductive rubber.
108-109ohm
109-1010ohm
HZ-418B
610x910x20
3 layers: PVC + EPDM +
Conductive rubber.
108-109ohm
109-1010ohm
Low cost
design
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Company Profile
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber

Shanghai Herzesd Industry Co., Ltd


Specialized range of ESD products including anti-static equipments, ESD Work Station Accessories, Safe Packaging Materials, ESD Control Materials, etc.

In today's cutting edge competition of electronic products, Shanghai Herzesd Industry Co., Ltd enjoys a high reputation amongst customers due to its excellent product quality, reasonable price range, and top class professional services. Established in the year 2018, we are a reputed manufacturer, supplier, exporter and trader of ESD Products which include ESD Equipments, Anti-static Equipments, ESD Work Station Accessories, ESD Shielding bag,ESD Magazine Rack, ESD PCB trolley,ESD Workstation,ESD Garments, ESD Fabrics, Safe Packaging Materials, ESD Control Materials, Static Control Equipments, etc.
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Our Factory
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Certifications
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Packing and Shipping
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
Our Services
Customizable ESD Anti-Fatigue Mat PVC EVA Foam Conductive Rubber
FAQ
1. Why You Need ESD Protect For Your Production Line?
Electronic Components Or Assemblies At Risk From Electrostatic Discharges(ESD) Are Among Those Sensitive Elements Which Can Be Destroyed Or Damaged If The Permitted Levels Of Current Or Impact Energy Are Exceeded.
As A Rule, These Are Always Semi-Conducting Components And Most Are Also Thick- And Thin-Film Construction Elements.
This Type Of Construction Element Is Mostly Damaged Through Human Mishandling.
A Human-Being Can Charge Several Thousands Of Volts Just By Walking.
A Discharge Can Be Felt By Humans From Approximately 2000-3000 V,
A Current Which Is Already Well Above The 'Tolerance Level' Of Many ESD Components.

Before Buying Or Implementing ESD Safe Products One Needs Implementing An ESD Safe Procedure According To The ESD Standards IEC 61340 Or ANSI S2020 Which Is The Foundation Of ESD Preventive Protective Work And A Greater Guarantee Of Quality Assurance.

Besides Our Anti-Static Conductive ESD Workstations We Offer An Extensive Range Of Antistatic ESD Chairs, Antistatic ESD Cleaning & Maintenance, Antistatic ESD Clothing, ESD Shoes ESD Footwear, Antistatic ESD Flooring & Antistatic ESD Table Mats, ESD Safe Packaging, ESD Personal Grounding Materials, Anti-Static ESD Protective Storage & Warehousing Systems EPA, ESD Storage Boxes, ESD Test & Measuring Equipment, ESD Trainings, ESD Support & ESD Audits.

2. Why You Choose HerzESD?
HerzESD Strives To Serve Our Customers Better By Offering Correct And Clear Explanatory Answers.
We Try To Do So, Even When Informing Our Customers Better, Means Contradicting A More Established But Sometimes Flawed Opinions On The Market.
At HerzESD We Pride Ourselves On Ensuring The Only Correct ESD Solution.
To Continue This Vision We Need Reliable ESD Manufacturers And Suppliers On Which We Can Always Count. HerzESD Is A Solid Partner And Together With Our International Partners We Stay Strong And Vigilant In Regards To Possible Improvements Or New Solutions In Tackling And Controlling Static Electricity.
